Manufacturer of Aramid (Kevlar) & UHMWPE Webbing
Specializing in Aramid (Kevlar® / Nomex®) and UHMWPE (Dyneema®). Engineered for Fire Resistance, Extreme Strength, and Cut Protection.
- 🔥 Aramid: Heat resistant up to 450°C (842°F)
- 💪 UHMWPE: 15x stronger than steel (weight-for-weight)
- 🛡️ Mil-Spec: Berry Compliant options available
Advanced Material Solutions

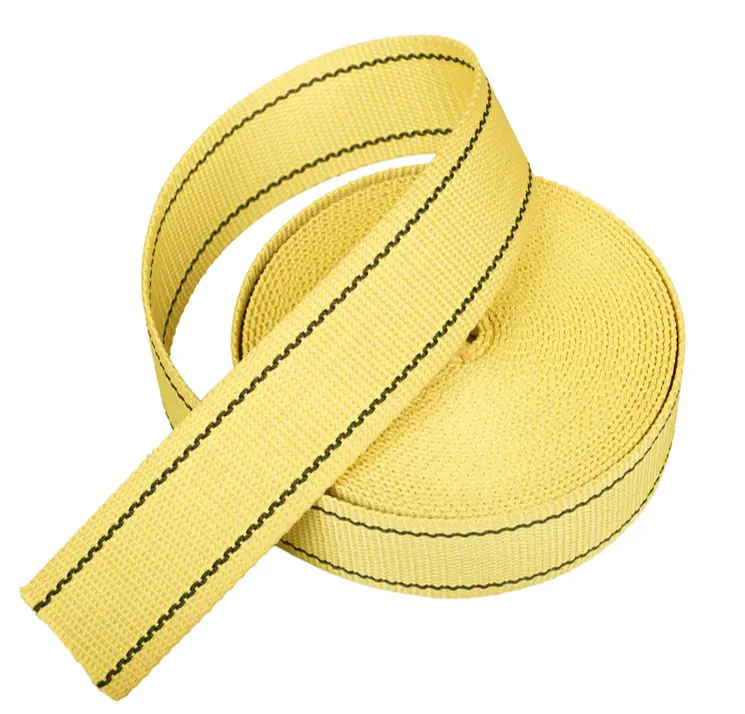

Aramid (Kevlar®) Webbing
Key Feature: Fire & Heat Resistance.
Does not melt or drip. Self-extinguishing. Ideal for firefighter gear, welding safety, and aerospace heat shields.
- • Decomposition: >450°C
- • High Chemical Resistance
- • Low Elongation

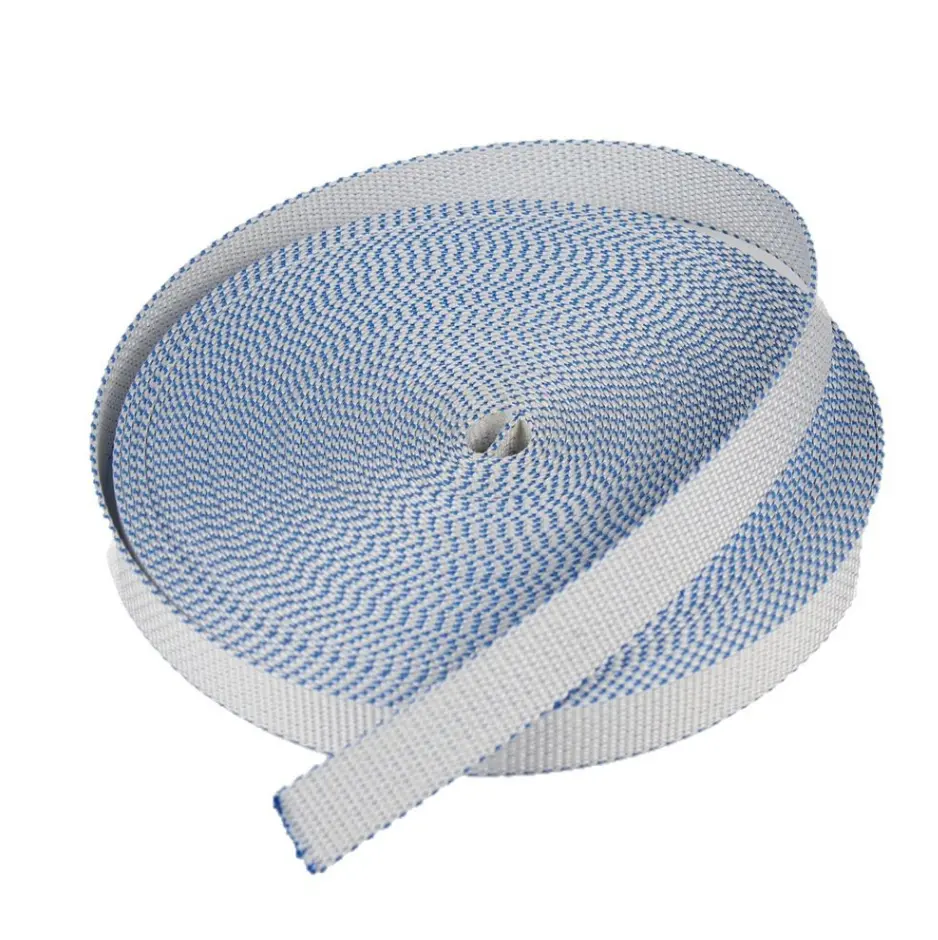

UHMWPE Webbing
Key Feature: Max Strength / Lightweight.
Floats on water. Extremely resistant to abrasion, UV, and salt water. The top choice for marine lifting and outdoor heavy-duty gear.
- • 15x Stronger than Steel
- • Zero Water Absorption
- • Superior Cut Resistance

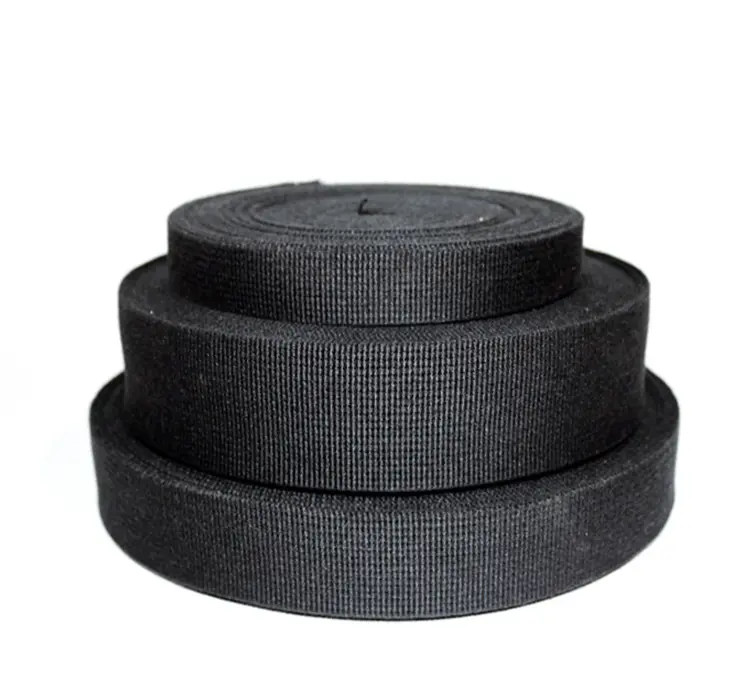

Tactical & Hybrid Webbing
Key Feature: Mission Critical.
We offer Mil-Spec standards (MIL-W-17337, etc.) and hybrid weaves (e.g., Polyester + Reflective, or Nylon + Dyneema core) for tactical applications.
- • IRR (Anti-Infrared) Treatment
- • Camouflage Printing (Multicam)
- • Berry Compliant Options
Built for Mission-Critical Missions
Our high-tenacity webbings are the hidden backbone of industries where failure is not an option.
Safety Harnesses & SCBA
Using Aramid Webbing. Meets NFPA standards for heat resistance. Essential for firefighter turnout gear and escape ropes.

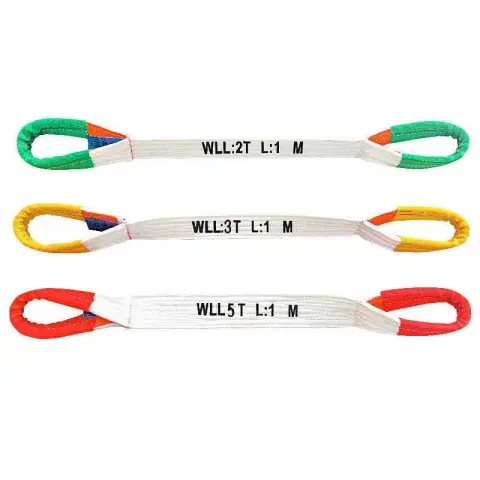

Marine & Industrial Slings
Using UHMWPE Webbing. Replacing steel wire ropes. Floats on water, resists salt corrosion, and lifts heavy loads with minimal weight.
Tactical & Parachutes
For drastic load-bearing requirements. Ultra-low elongation and high abrasion resistance for cargo nets, parachutes, and plate carriers.
Slackline & Highline
Engineered for the extreme. We manufacture Hybrid & UHMWPE webbings with ultra-low elongation and high breaking strength (30kN+). Soft edges for handling comfort.
Strength & Performance Data
Below is a comparison of 1-inch (25mm) wide webbing made from different materials.
| Technical Specs | Nylon (Standard) | Aramid (Kevlar®) | UHMWPE (Dyneema®) |
|---|---|---|---|
| Tensile Strength (for 1" / 25mm) | ~ 4,000 lbs (17.8 kN) | ~ 6,500 lbs (29 kN) | ~ 10,000+ lbs (45 kN) |
| Elongation at Break (Stretch) | High (20% - 30%) | Low (3% - 4%) | Ultra-Low (2% - 3%) |
| Weight / Density | Medium (1.14 g/cm³) | Heavy (1.44 g/cm³) | Lightest (0.97 g/cm³) Floats on water |
| Max Operating Temp | 150°C (300°F) | 450°C (842°F) Fire Retardant |
80°C (176°F) |
| Cut & Abrasion Resistance | Good | Excellent | Ultimate (Extreme Cut Resistant) |
*Note: Tensile strength depends on the weave density and thickness. We can customize the weave to meet your specific MBS (Minimum Breaking Strength) requirements.
Frequently Asked Questions
We understand these are high-value materials.
• In-Stock Items: No MOQ. You can order as little as 1 roll (50 meters).
• Custom Orders: Typically starts from 1,000 meters depending on the width and weave complexity. Contact us to discuss your specific project.
Yes. We provide a High-Performance Sample Kit containing short cuts of our standard Kevlar® and UHMWPE webbings for your lab testing (Burn test / Cut test). You only need to cover the courier shipping cost.
It depends on your "Enemy":
• Choose Aramid (Kevlar) if you face Heat, Fire, or Friction Heat.
• Choose UHMWPE if you need Maximum Strength, Floating on water, or UV resistance.
Still not sure? Our engineers can help you choose the right fiber.
Yes. We have automated cutting machines and programmed sewing machines. We can supply finished slings, straps with buckles, or precise cut pieces to save your manufacturing time.
Get A Quote & Free Sample Kit
Factory Direct Service
We understand that high-performance projects require strict testing. We provide:
- ✅ Free Sample Kits (Aramid/UHMWPE short cuts)
- ✅ Third-party Test Reports support
- ✅ Custom Weave/Width development
