In many industries, the performance of a simple strap can be the difference between safety and catastrophe. While standard polyester and nylon webbing offer incredible strength, they will melt and burn when exposed to flame. For applications in firefighting, industrial safety, motorsports, and aerospace, that's an unacceptable risk. This is where Flame Retardant (FR) webbing becomes an essential, life-saving component.
But not all FR webbing is created equal. The term can refer to two very different approaches: a chemical treatment applied to a standard material, or a fiber that is inherently, naturally flame resistant. Understanding this distinction is crucial for specifying the correct material for your product.
Approach 1: Flame Retardant (FR) Treatments
The most common approach is to apply a specialized chemical finish to a standard webbing material like polyester. This FR treatment doesn't make the webbing fireproof; instead, it works by inhibiting ignition and promoting self-extinguishing.
When a flame is applied, the chemical treatment creates a "char barrier" on the surface, which insulates the inner fibers from the heat and cuts off the oxygen supply. As soon as the external flame source is removed, the webbing stops burning. However, it's important to note that the underlying material (polyester or nylon) will still melt and drip when exposed to intense heat.
Approach 2: Inherent Flame Resistance with Aramid Fibers
The superior, high-performance approach is to use fibers that are flame resistant at their molecular level. The most well-known of these are aramids, such as Kevlar® and Nomex®. As we explored in our guide to aramid webbing, these materials have a unique chemical structure that is extraordinarily resistant to heat.

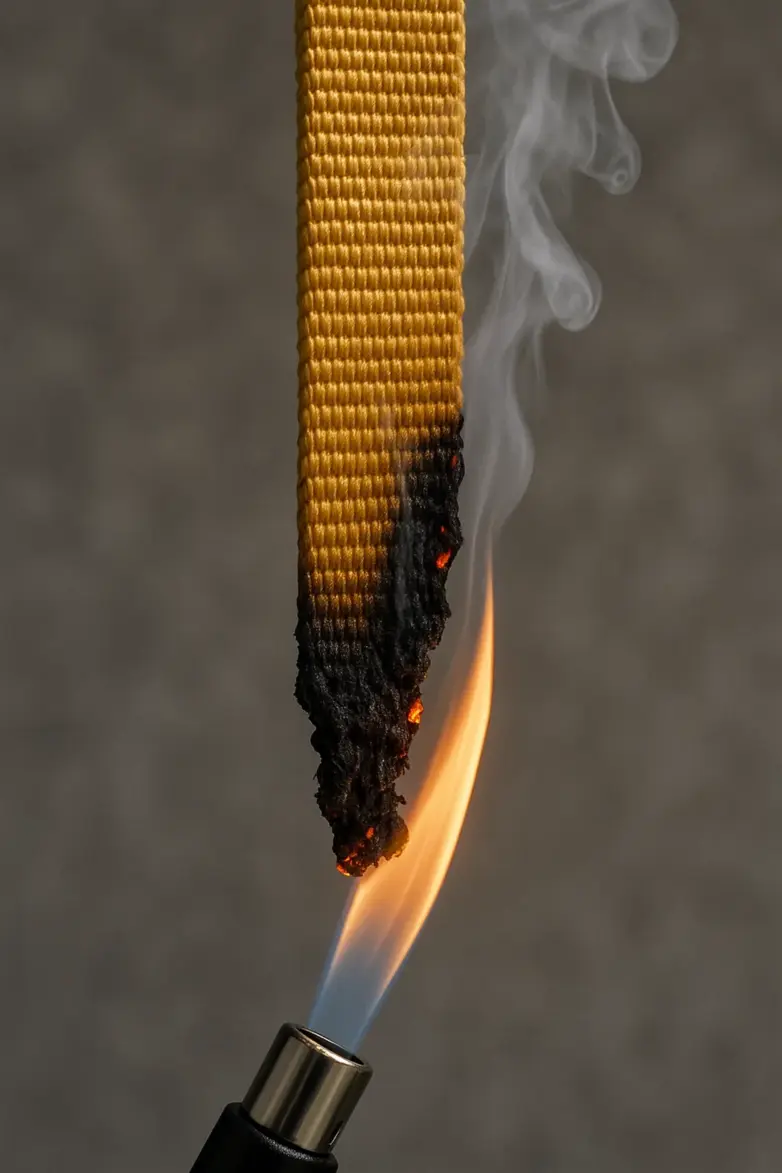

When exposed to flame, aramid fibers do not melt, drip, or support combustion. They will simply char and carbonize at extremely high temperatures (decomposing above 400°C / 750°F). This property is permanent and cannot be washed away or worn off.
The Head-to-Head Comparison: Treated vs. Inherent FR
Let's compare these two approaches across key performance and cost metrics.
| Feature | Inherent FR (Aramid/Kevlar®) | FR Treated (Polyester/Nylon) |
|---|---|---|
| Mechanism | Molecular property of the fiber | Chemical coating/finish applied to the fiber |
| Performance | Does NOT melt or drip; chars at high heat | Self-extinguishes, but will melt and drip |
| Durability of FR Property | Permanent; cannot be washed or worn out | Good, but can diminish over time with heavy abrasion or washing |
| Cost | Very High (Premium performance) | Moderate (More economical than aramid) |
Understanding Safety Standards like UL94
To ensure performance, FR materials are often tested against standards like UL94. A common rating, UL94 V-0, means that on a vertical specimen, burning stops within 10 seconds, and no flaming drips are allowed. This provides a clear benchmark for the material's self-extinguishing capabilities.
Which FR Solution is Right for Your Application?
The choice ultimately depends on the level of risk, required specifications, and budget for your project.
Choose Inherent FR (Aramid) Webbing for:
- Life-Critical Safety Gear: Firefighter harnesses, escape ropes, and first responder equipment where "no melt, no drip" is a mandatory safety requirement.
- Aerospace and Motorsports: Applications like racing harnesses and interior components where both extreme heat resistance and high strength-to-weight ratio are critical.
- Extreme Industrial Environments: Welding blankets, foundry safety gear, and applications where direct contact with sparks or molten metal is possible.
Choose FR Treated Webbing for:
- General Industrial Safety: For safety harnesses and lanyards used in environments with a potential but not constant fire risk.
- Protective Sleeving: For bundling wires and hoses in electronic or automotive applications to prevent the spread of flame.
- Upholstery & Construction: As a component in furniture or barrier fabrics where meeting a specific fire code (like UL94) is required, but direct flame contact is unlikely.
Specifying the right flame retardant webbing is a critical decision that protects both users and your brand's reputation. Whether your project demands the cost-effective compliance of an FR treatment or the uncompromising safety of aramid fibers, our experts can engineer the perfect solution. Contact us to discuss your safety requirements.
