UHMWPE Webbing: Properties, Limitations & Sourcing

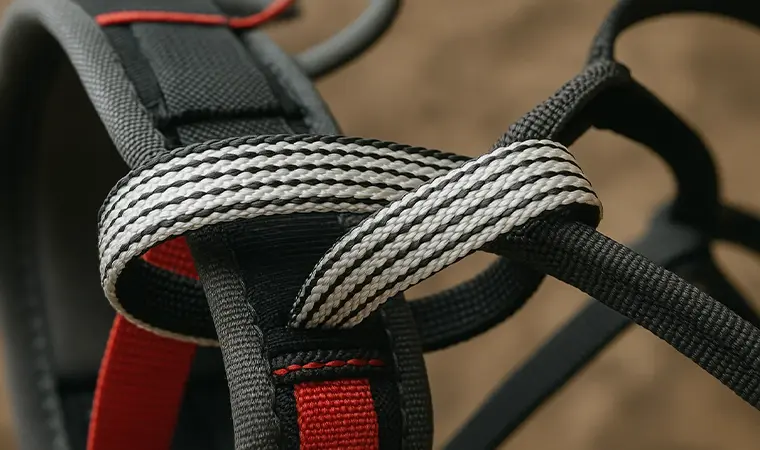

A close-up of high-performance Dyneema webbing being used in a climbing harness, showcasing its strength and lightweight properties.

UHMWPE webbing is woven from ultra-high-molecular-weight polyethylene fiber. It is considered when high strength relative to mass and low extension are important. Dyneema is a fiber brand, not a generic certificate for every UHMWPE strap. Confirm whether your RFQ requires a named fiber brand or accepts a documented generic fiber.

What the Fiber Name Does and Does Not Tell You

The fiber is only one part of a webbing specification. Yarn grade, weave, yarn count, width, thickness, coatings and hybrid materials affect the finished result. A fiber-level strength-to-weight claim does not become a guaranteed breaking force for a 25 mm strap.

For a branded requirement, request the actual fiber identification and supply documentation. Do not describe generic material as genuine branded fiber without that evidence.

UHMWPE, Nylon and Polyester: Selection Questions

MaterialTypical reason to evaluate itMain qualification questions
UHMWPELow mass, low extension and high specific strengthHeat exposure, long-term loading/creep, surface friction, seam design and actual construction
NylonToughness and greater extensionWet conditioning, abrasion and the required load-extension behavior
PolyesterLower extension than many nylon constructions and low moisture uptakeFinished strength, weathering, abrasion and dimensional requirements

Limitations That Belong in the Design Brief

Heat: define the operating environment, frictional heating and exposure duration. Do not use fiber melting or decomposition data as a continuous operating rating for a completed strap.

Sustained load: creep depends on fiber grade, load, temperature and time. Low extension in a short pull test does not mean zero long-term movement. Request data or testing for the actual service condition.

Joining: a low-friction construction may behave differently in knots, stitching or hardware. Check seam efficiency, slip, bending and edge contact on the actual assembly. Do not infer a sewn or knotted strength from a straight-pull webbing value.

Outdoor use: ask for relevant aging and retained-strength evidence. No material should be advertised as having “no UV degradation” under all conditions. Coatings, colors and hybrid fibers also change performance.

Buoyancy and Marine Use

UHMWPE fiber has low density, which can be useful in marine designs. The buoyancy of the finished assembly also depends on coatings, other fibers, stitching and attached hardware. Define whether flotation is a requirement and test the assembly accordingly.

What to Ask for in a Test Report

  • Material and yarn grade, including brand where required.
  • Webbing width, thickness, mass per meter, weave and finish.
  • Breaking-force and elongation method, conditioning, individual results and batch ID.
  • Creep, heat, abrasion or weathering conditions relevant to your application.
  • Results for the final seams or hardware assembly where applicable.

Factory Sourcing and Cost

Compare quotations for the same construction, quantity, finish, testing and delivery terms. There is no useful universal factory price for “Dyneema webbing” without those details. A lower price may reflect a different fiber grade, yarn content, weave or documentation scope.

TMG manufactures in Dongguan, China. Use our Aramid and UHMWPE product page for a specification discussion. For heat-versus-weight trade-offs, read the dedicated Aramid vs UHMWPE comparison; for grade verification, see the fiber-grade sourcing guide.
